Identify shadow zones and spray-device performance issues using riboflavin coverage testing. Immediate UV-visible results show whether the cleaning solution reaches and rinses all required internal tank surfaces during CIP, helping reduce cross-contamination and microbiological risks.

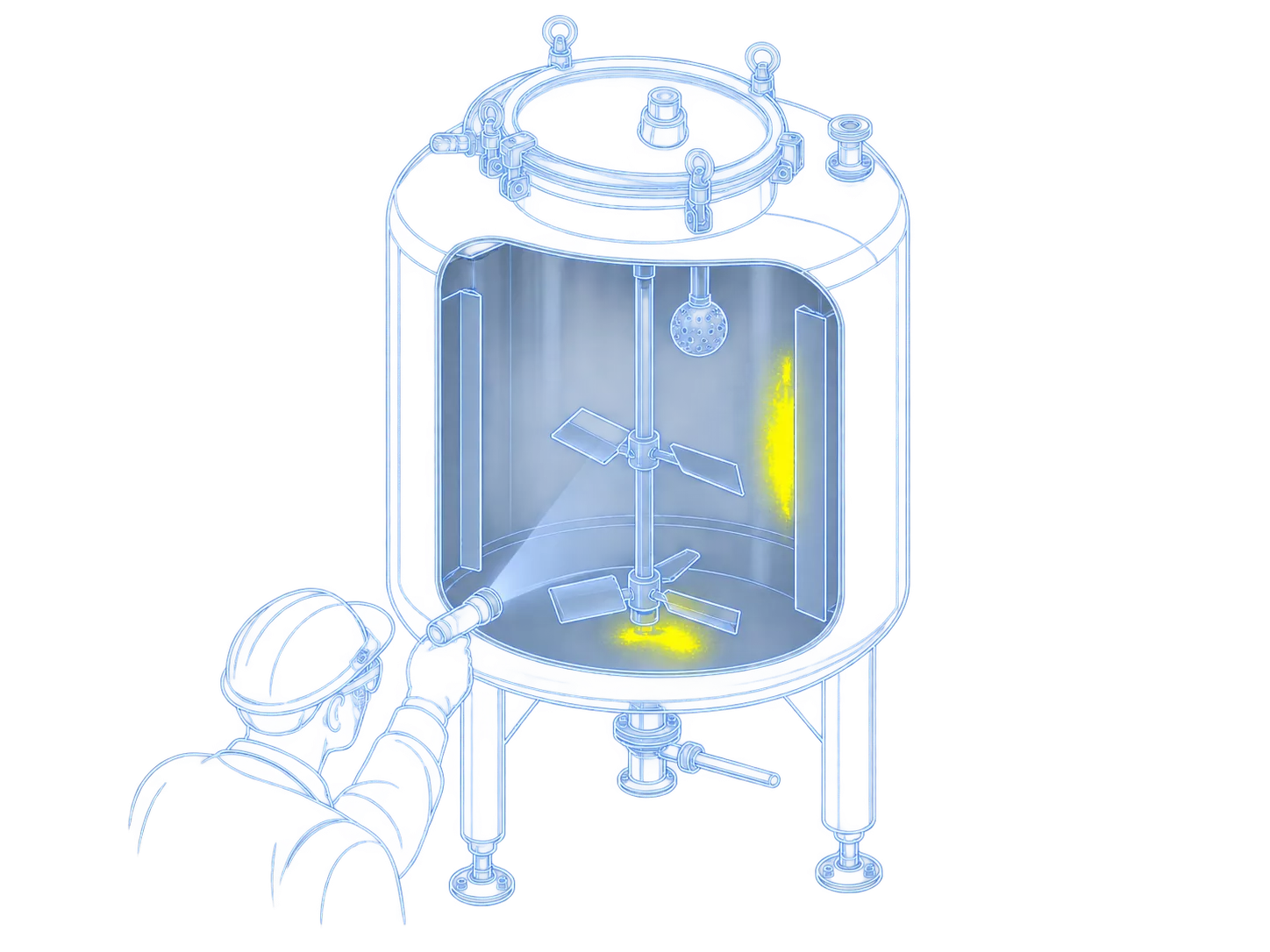

WHAT IS RIBOFLAVIN COVERAGE TEST
Visual Spray Coverage Validation for CIP Cleaning Devices
The riboflavin coverage test is a visual spray device coverage test used in tank cleaning validation to verify whether cleaning liquid reaches and rinses all required internal surfaces during CIP. This riboflavin spray coverage test helps identify clogged, jammed, or damaged cleaning devices and shadow zones created by agitators, hatches, and other tank internals.
Since riboflavin (vitamin B2) is water-soluble, non-toxic, and glows bright yellow under UV light, it serves as a safe and effective indicator for visual cleaning validation.
WHY RIBOFLAVIN TESTING MATTERS
If cleaning solution does not physically reach all target surfaces inside a tank, certain areas can remain uncleaned and become a source of contamination risk and microbiology problems. Riboflavin testing helps reveal these hidden weak points immediately, giving engineering, quality, and production teams a clear basis for corrective action.
Helps ensure product quality and food safety by showing whether all target surfaces are reached.
Speeds up validation timelines so production lines can launch faster.
Provides immediate visual feedback without waiting for lab analysis.
Identifies the exact coordinates of shadow zones and blind spots.
Helps reveal malfunctioning cleaning devices and supports microbiology-safe processing.
Provides clear visual evidence of cleaning coverage for validation reports, audits, and corrective-action planning.
WHEN THIS SERVICE IS NEEDED
This test is relevant when a plant needs to confirm that a spray device physically reaches all target surfaces during CIP. It is especially useful during commissioning, after modifications to spray devices or tank geometry, when coverage performance is uncertain, or when unexplained hygiene issues may be linked to incomplete rinsing.
01
Used as a recognised validation step when confirming cleaning-device performance.
02
Useful after replacing, cleaning, or adjusting the cleaning device.
03
Relevant when tank internals, agitators, hatches, or geometry have changed.
04
If certain areas may not be reached during cleaning.
05
If previous results or production issues suggest incomplete coverage.
DEFECTS WE DETECT
Riboflavin testing does not measure sterility or residue removal directly. It is a visual spray-coverage validation method that reveals whether cleaning liquid physically reaches all targeted surfaces, components, and internal areas of the tank.

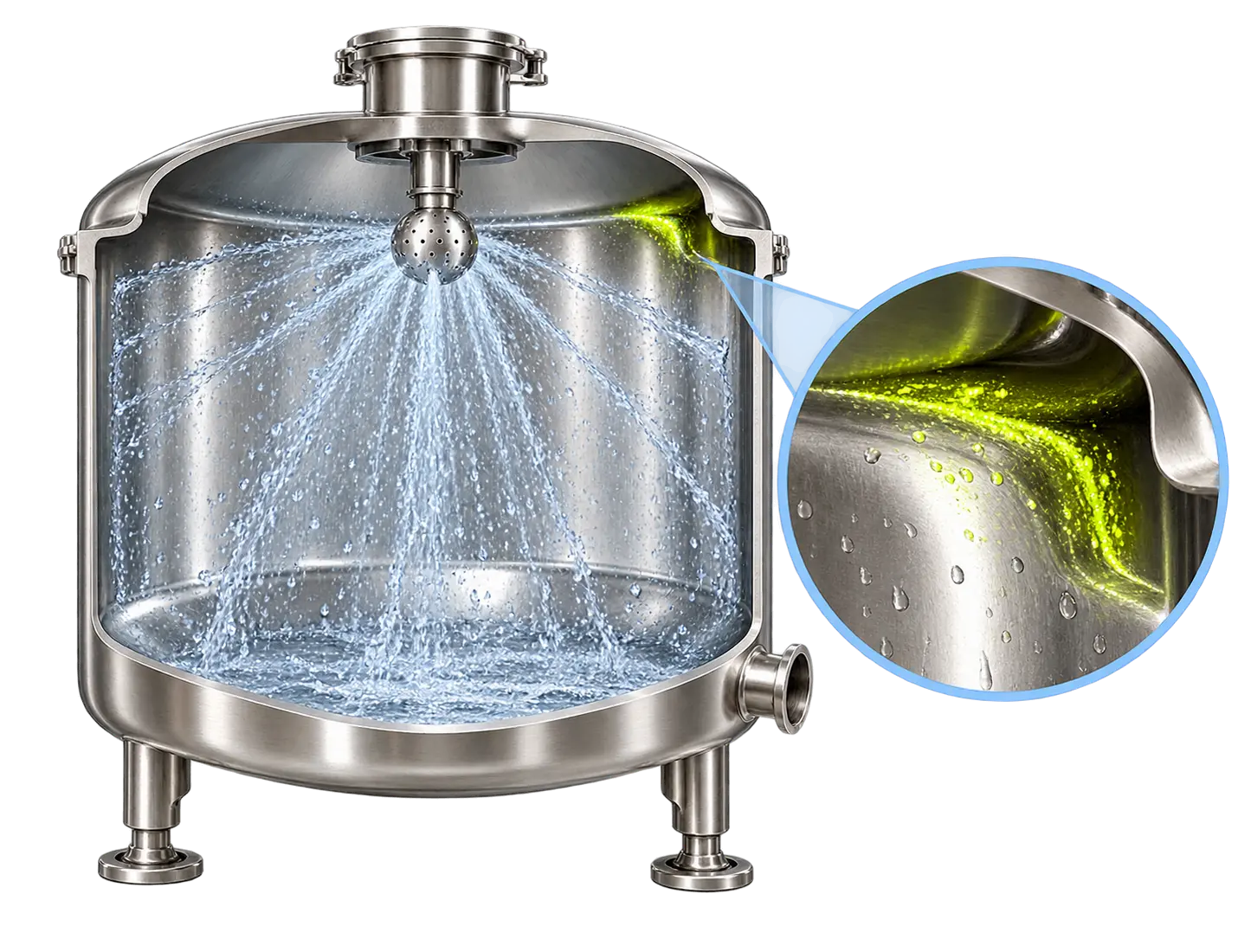

Areas where the cleaning spray does not reach effectively.

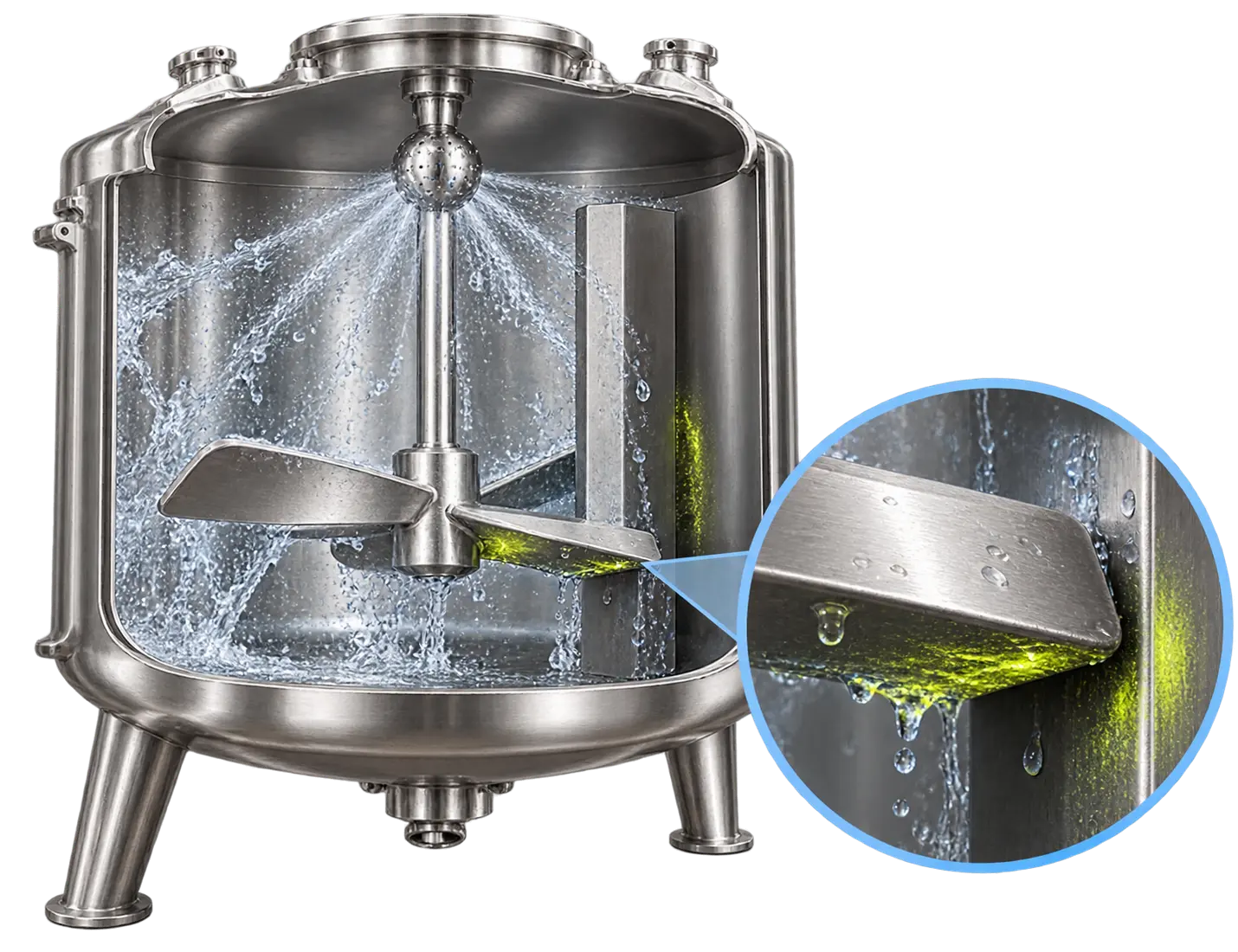

Uncovered surfaces behind agitators, hatches, nozzles, and other components.

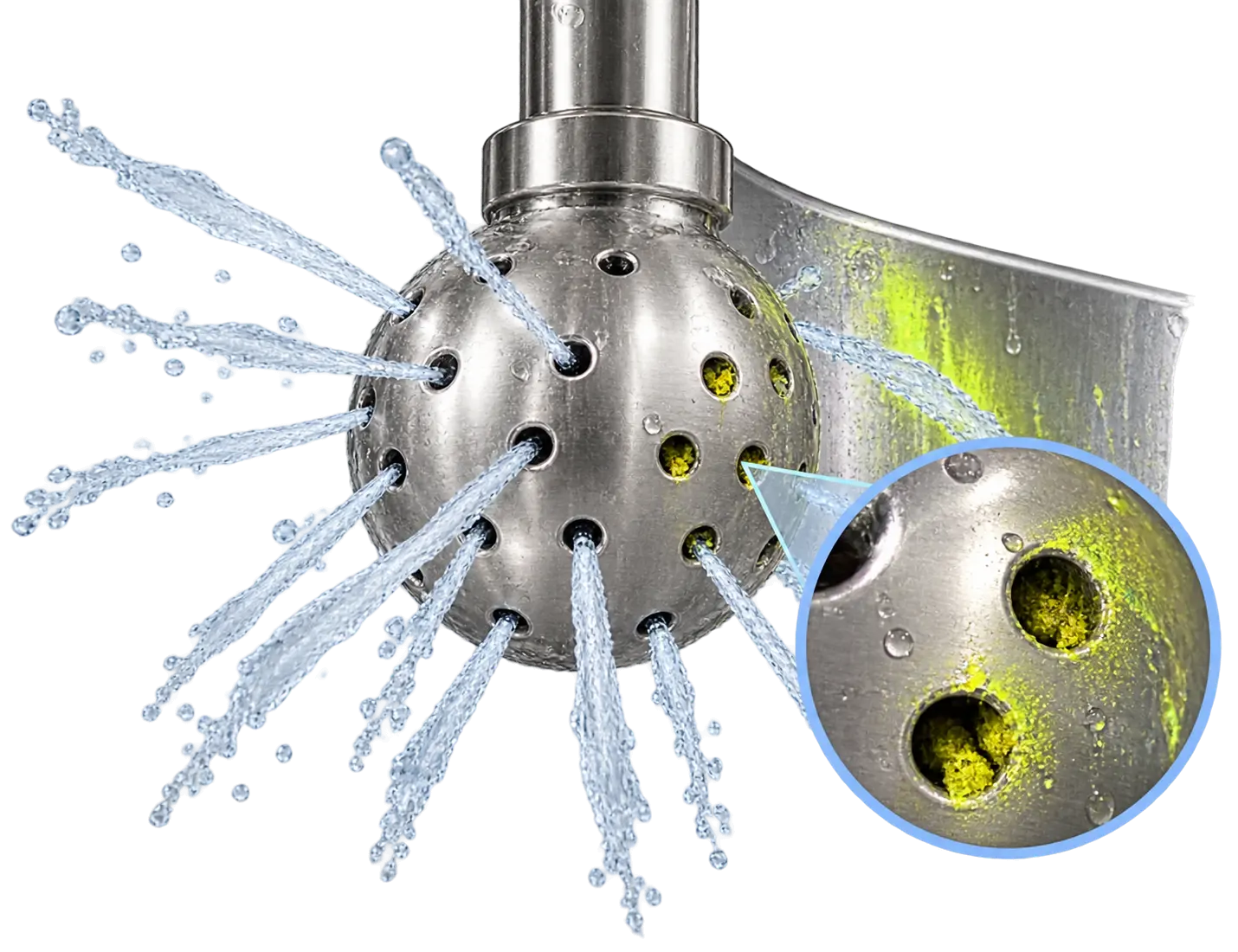

Coverage problems caused by clogged, jammed, or damaged cleaning devices.

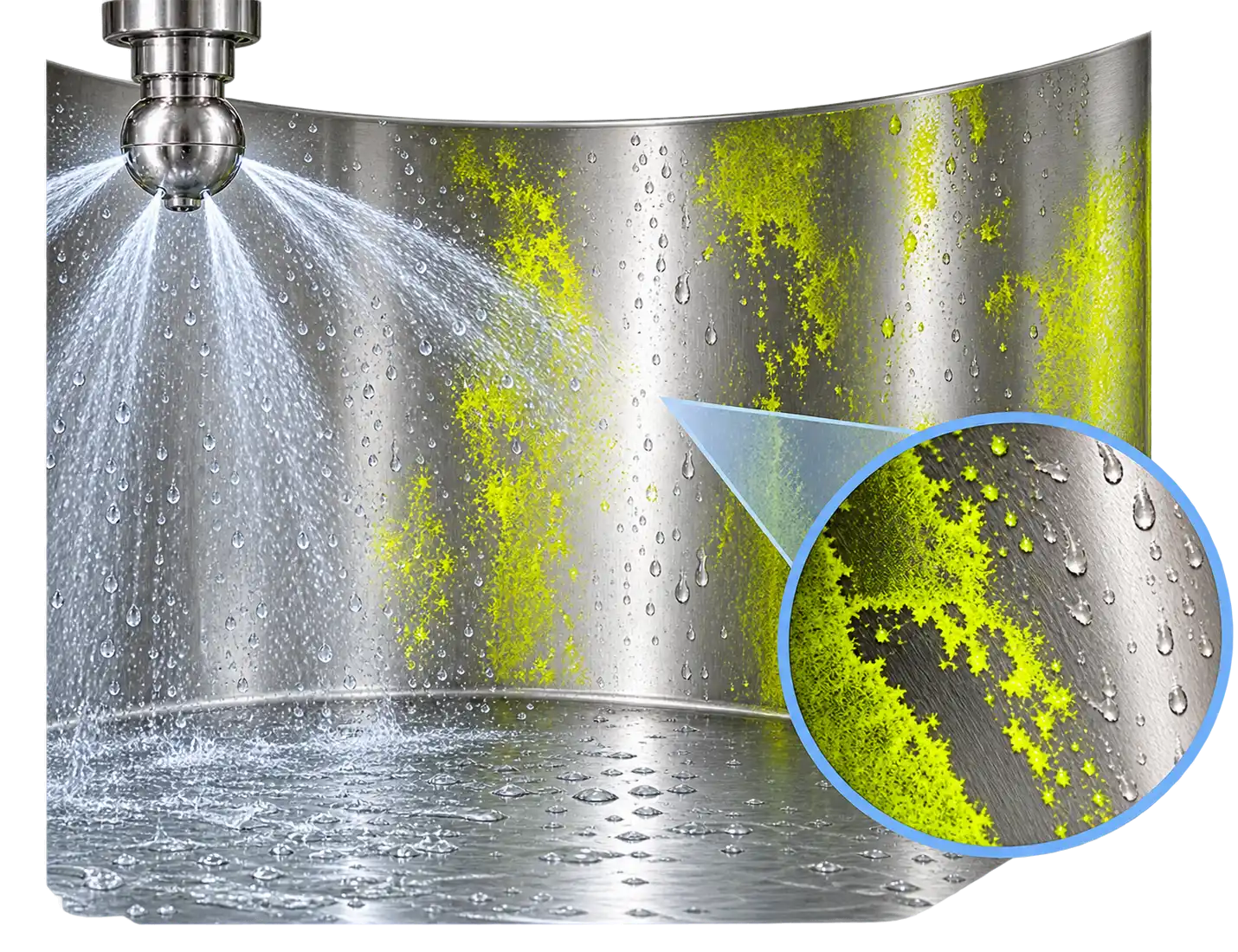

Zones where rinsing pattern is incomplete or inconsistent.

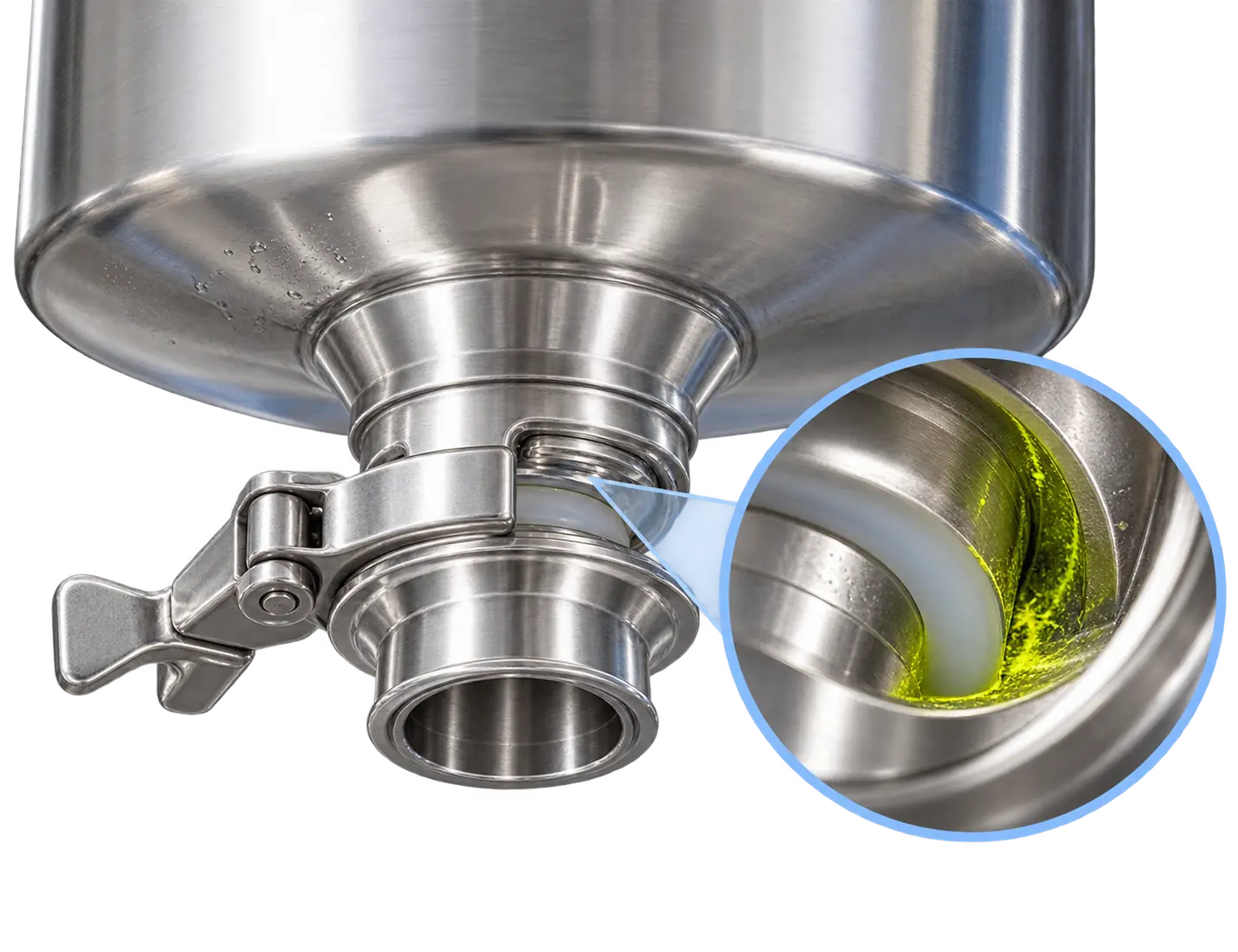

Locations that may become a source of cross-contamination or microbiology problems.
TYPICAL EQUIPMENT
Riboflavin coverage test is suitable for multiple types of process equipment where full spray coverage matters for hygienic cleaning validation. The method is especially relevant for tanks and vessels with internal components that may create shadow zones.

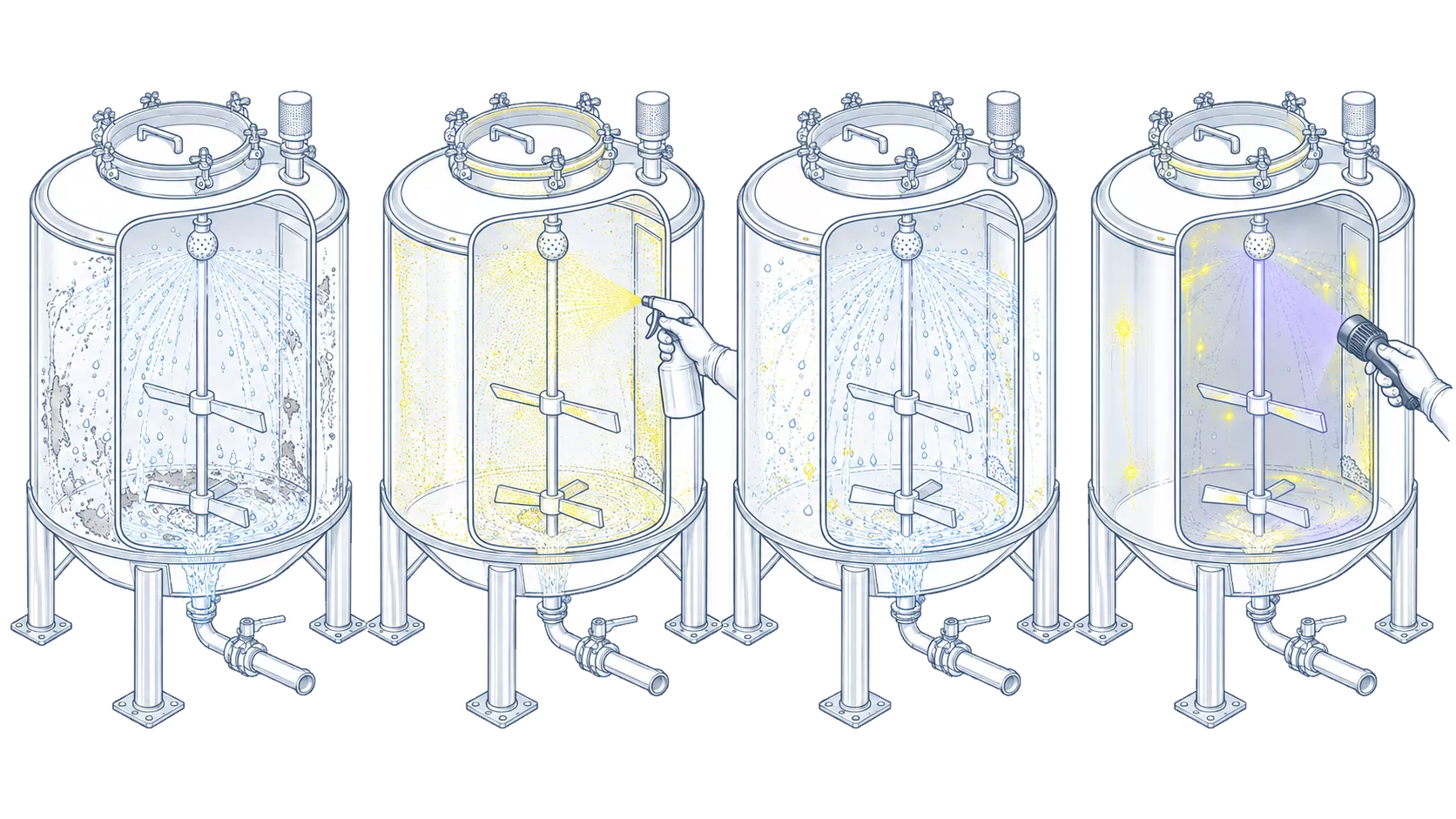

HOW THE TEST IS PERFORMED
01
All residues and contaminants are removed from the tank surface before testing. The surface must be fully clean before the next step.
02
A riboflavin solution is applied as a fine mist using a spray bottle or manual lance until it uniformly coats all target internal surfaces, including equipment parts, agitators, nozzles, and gaskets.
03
A brief, standard water-only CIP rinse cycle is run at the targeted operating pressures and flow rates.
04
The internal surfaces and parts are inspected under UV illumination and controlled lighting conditions to detect any remaining fluorescence. Residual glow indicates incomplete spray coverage.
HOW THE SERVICE IS DELIVERED
The riboflavin method is only one part of the service. In practice, plants also need a clear workflow: identifying the tank to be tested, preparing the surface, carrying out the test, documenting the result, and defining follow-up actions where coverage is incomplete.
01
Define which tanks, vessels, or cleaning devices require validation based on risk, modifications, or hygiene concerns.
02
Confirm that equipment is properly cleaned and ready for uniform riboflavin application.
03
Apply the solution, run the rinse cycle, and inspect the target surfaces under UV conditions.
04
Record residual fluorescence, shadow zones, and spray-device issues with photo evidence where applicable.
05
Define whether troubleshooting, spray-device adjustment, or CIP-process correction is needed.
WHAT YOU GET
The value of riboflavin coverage testing is not limited to confirming whether the spray pattern works. After the test, your team receives a structured result set that shows where coverage was complete, where residual fluorescence remained, and what corrective actions may be needed.
ES
ZS
SR
DI
OP
RN
WHY CIP EXPERTS
01
We know CIP processes in detail and understand how hygiene issues develop in process equipment — and how to investigate them correctly.
02
We stay available before, during, and after the service to help the customer move from inspection findings to practical next steps.
03
We adapt the testing scope to the complexity of the project, the equipment involved, and the specific needs of each customer.
04
Every inspection ends with a clear, detailed report that shows the findings, highlights the problem areas, and outlines recommended actions.
FAQ
Is riboflavin coverage test required by regulatory agencies?
Confirmation of cleaning validation is mandatory. Riboflavin testing is widely accepted as a standard practice during FAT and OQ to support compliance.
What should I do if the test fails?
If residual fluorescence shows an unrinsed shadow zone, the cleaning device and the CIP process should be checked and troubleshot.
Does the test prove that a vessel is clean or sterile?
No. The method is a spray-ball coverage validation tool, not a sterility or cleanability test. It shows whether CIP solution physically reaches the targeted surfaces and components.
