Achieve reliable cleaning of viscous and difficult-to-remove product residues with CIP solutions engineered around your equipment, soils, and process conditions.
SAUCES AND LIQUID FOODS CONTEXT
In sauce and liquid-food plants, cleaning performance directly affects hygiene, product quality, allergen control, and production continuity. Viscous products can leave sticky residues containing fats, starches, proteins, sugars, and seasoning particles. Frequent recipe changes and varied product behaviour make repeatability, traceability, and appropriate CIP design especially important.
 | Viscous and sticky product residuesProduct can remain on vessel walls, mixer components, valves, and transfer lines. Cleaning conditions must match the soil load and available mechanical action. |
 | High cleanability demands across different recipesDifferent fat, starch, protein, and particle contents can require different cleaning sequences. Shared equipment needs recipes adapted to the products it handles. |
 | Repeatable cleaning and allergen-risk controlDocumented cleaning conditions and targeted verification support reliable changeovers. Where allergens are present, the cleaning assessment includes appropriate allergen-specific methods. |
COMMON CHALLENGES
Sauce and liquid-food production can expose cleaning weaknesses through persistent residues, poor drainage, long cycles, and difficult-to-verify hygiene performance. Contributing factors include product complexity, limited process visibility, insufficient mechanical action, and cleaning logic that does not match the soil load.
Viscous sauces, fillings, and liquid-food mixes can remain in vessels, bends, valves, and dosing sections when flow, temperature, chemistry, and exposure time do not match the product.

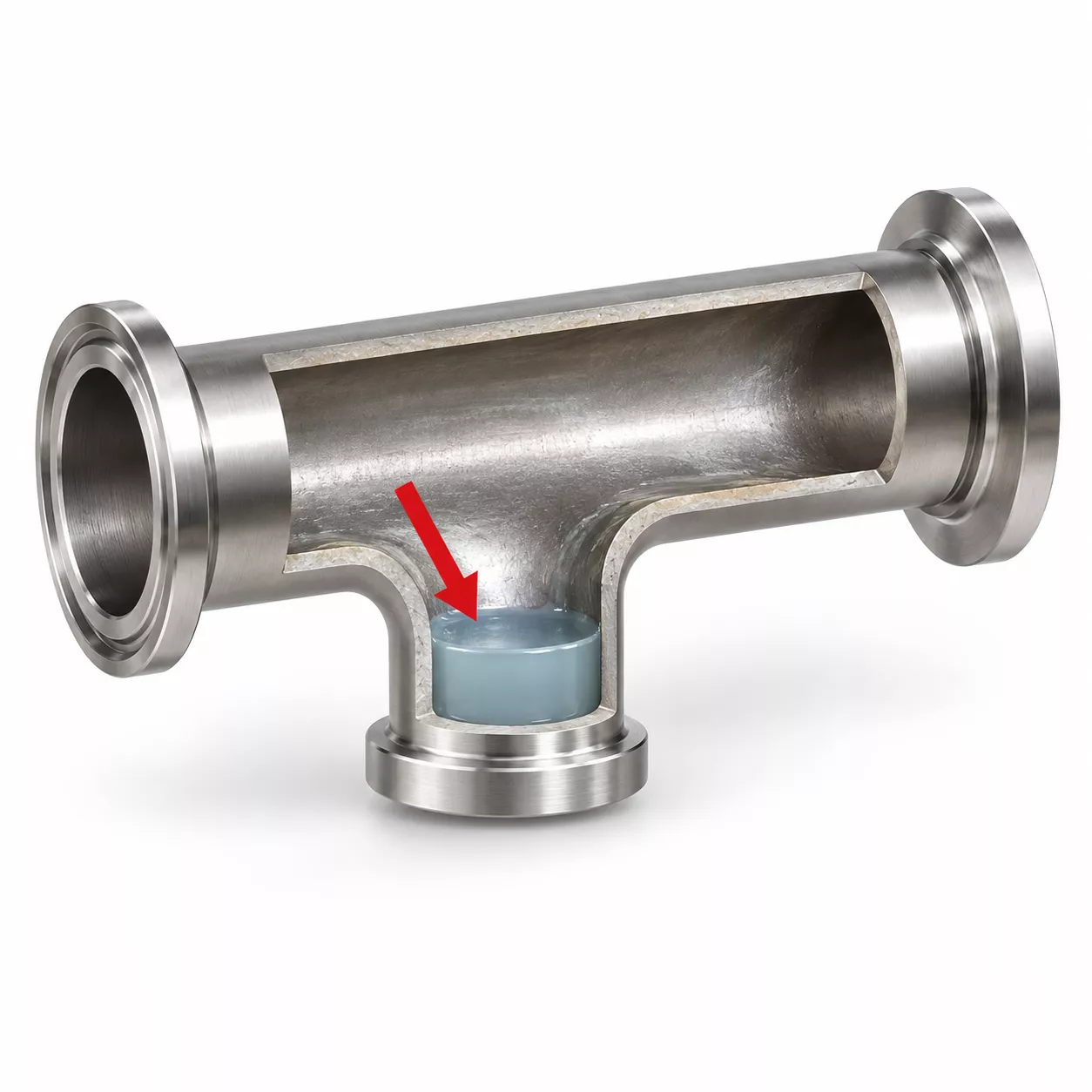

Pockets, dead legs, and poorly draining sections can retain product and cleaning solution. These areas require review of geometry, flow, and drainage conditions.

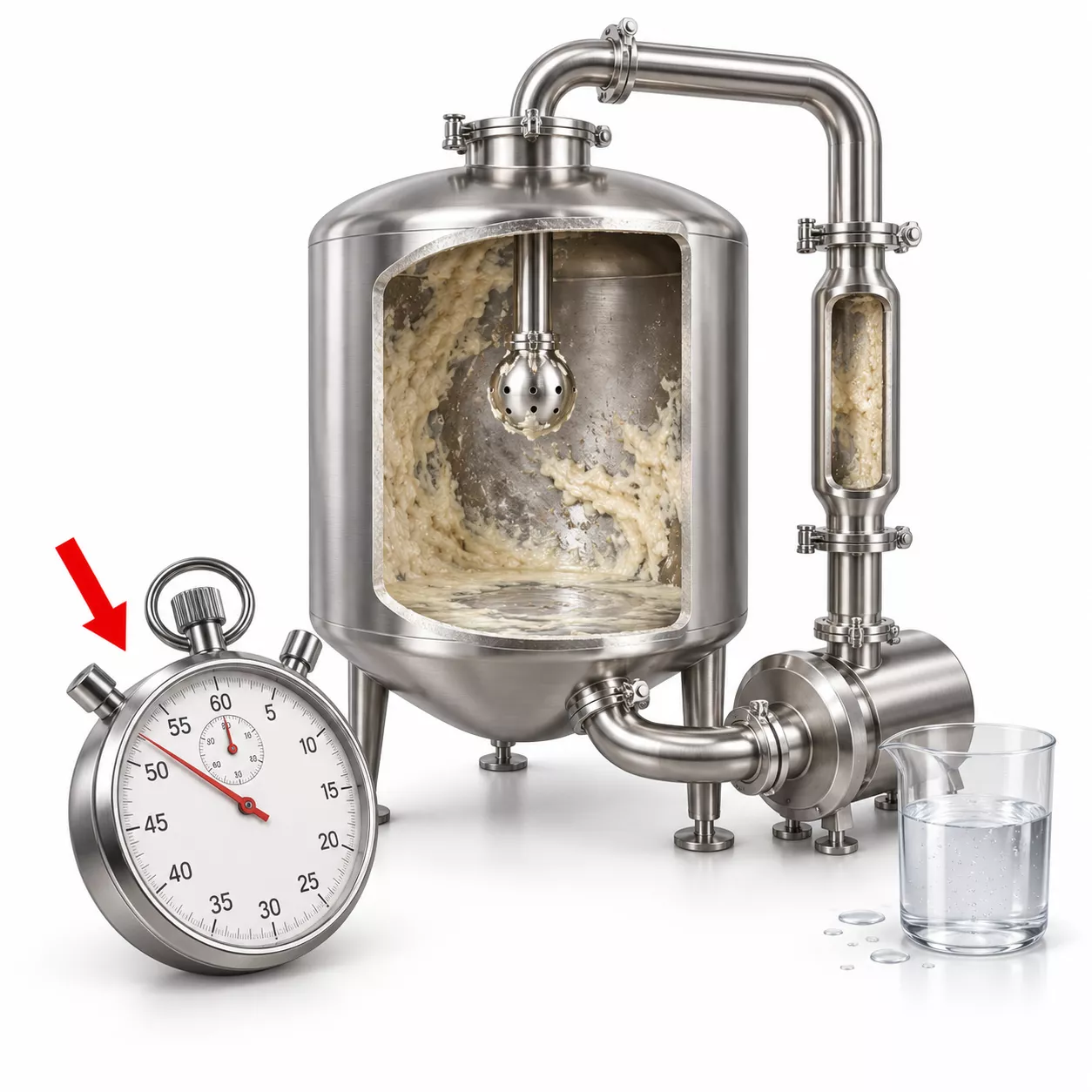

Uncertainty about cleaning performance can lead to extra rinsing, higher chemical doses, or repeated cycles. These measures increase water, energy, and detergent use.
Different sauce bases, viscosities, fat levels, starch loads, and seasoning particles may require different cleaning logic. One fixed routine may not suit every product family.
WHY THESE PROBLEMS HAPPEN
CIP can depend heavily on fixed recipes, operator habits, and limited feedback during execution. Gaps in daily CIP expertise and insufficient evidence of residue removal make cleaning harder to control, optimize, and validate.
Skills gap during execution
Fixed routines for different viscosities
Weak visibility into cycle behaviour
Poor drainage or design constraints
Unstable cleaning performance across products
Overcleaning or incomplete cleaning
Delayed correction of rinse or dosing problems
Hidden residues and hygiene risk
RELEVANT SOLUTIONS FOR SAUCES AND LIQUID FOODS
Every service we offer can support sauce and liquid-food production — but these are the solutions most often linked to the real cleaning and process-control problems of viscous and residue-heavy products: long CIP cycles, weak visibility, poor repeatability, and uncertainty around hygienic performance.
01
Custom-engineered for dairy soil types and cycle frequencies — with detergent recovery, EHEDG-compliant design, and built-in monitoring.
02
Full validation for CIP processes — from equipment qualification (DQ/IQ/OQ/PQ) to riboflavin spray coverage, biofilm detection, and microbiological testing.
03
Reduce water, chemical, and energy consumption by 20–50% through data-driven recipe analysis and sensor-driven end-point detection.
VALIDATION IN SAUCES AND LIQUID FOODS
Cleaning validation provides documented evidence that CIP removes relevant fat, starch, sugar, protein, and particulate residues and controls microbial contamination to defined acceptance criteria. Where allergens are relevant, the assessment includes suitable allergen-specific testing and representative changeover conditions.
For new or modified systems, the agreed qualification scope can include DQ for design, IQ for installation, OQ for operation, and PQ for performance under defined production conditions. Spray coverage checks, equipment and piping inspections, and laboratory analyses provide complementary evidence.
DQ
IQ
OQ
PQ
Surface defect checks on accessible sauce-processing equipment, product-contact surfaces, and welds.
GasTest tightness checks for relevant heat exchangers and equipment within the agreed scope.
Internal visual inspection of viscous-product lines, welds, gasket seats, and areas that retain product.
UV-traceable spray coverage checks for mixing tanks, sauce vessels, and tank-cleaning devices.
Targeted assessment of suspected biofilm in gasket zones, low-flow sections, and other difficult-to-clean areas.
ATP, TOC, swab, rinse-water, and allergen-specific tests selected according to the product and cleaning risk.
MONITORING
Review recorded conductivity, temperature, flow, timing, and phase sequence for connected vessels, mixers, loops, and transfer lines. Dashboards and automatic cycle reports help teams compare cleaning execution across recipes and investigate deviations.
Live dashboards show available CIP parameters by connected line and cleaning object. Teams can follow vessel, mixer, and transfer-line cleaning and review automatic cycle reports.
Configurable thresholds flag deviations in connected conductivity, temperature, flow, and timing signals. Email notifications support investigation of affected cleaning cycles.
Custom Power BI reports compare cycle time, repeatability, and available consumption data across product families. Identify patterns that warrant recipe review or investigation of excessive rinsing.
OPTIMIZATION GOALS
CIP optimisation in viscous-product plants often creates value in two areas at once: stronger cleaning reliability and lower resource use. Because these processes are prone to over-cleaning as a safety margin, even moderate improvements in rinse control, chemistry use, or cycle design can create significant annual savings.The most impactful gains usually come from refining recipe logic by product family and replacing fixed timing with sensor-based end-point detection where possible.
75 min
60 min
Average CIP cycle time
≈15 min saved per cycle
4.0 m³
3.0 m³
Water consumption per cycle
25% decrease
7.0 L
1.15 L
Detergent consumption per cycle
≈6× lower use
300 kWh
240 kWh
Energy consumption per cycle
−20% Energy consumption
RELATED PAGES
Explore engineering, modernization, validation, optimization, and digitalization services for sauce vessels, mixers, heat exchangers, transfer lines, and filling systems.
FAQ
Why is CIP more difficult for sauces and viscous liquid foods?
Viscous, fatty, protein-rich, or particulate products can adhere strongly to equipment surfaces and be difficult to displace and rinse. Cleaning performance depends on equipment geometry, flow conditions, temperature, chemistry, and exposure time.
Which areas are most difficult to clean in sauce-production equipment?
Risk areas include bends, valve clusters, gaskets, tank outlets, mixer components, low-flow sections, dead legs, and fillers. These locations need particular attention where product accumulates or cleaning action is limited.
How can CIP performance be improved for viscous products?
Review product displacement, circulation conditions, flow, heating, chemical concentration, phase duration, spray coverage, and equipment design. Improvements should address the actual soil load and be verified against defined cleaning criteria.
Can CIP resource use be reduced for sauce production?
Once cleaning conditions and results are understood, unnecessary rinsing, excess chemical dosing, overlong phases, and inefficient recovery can often be reduced. Any revised cycle must continue to meet hygiene and residue limits, including allergen criteria where relevant.
How do you investigate recurring hygiene problems after CIP?
Combine cycle-data analysis with targeted equipment and piping inspections, coverage tests, and suitable residue or microbiological testing. Review drainability, hygienic design, and recipe execution. Where allergens are involved, include appropriate allergen-specific verification.
